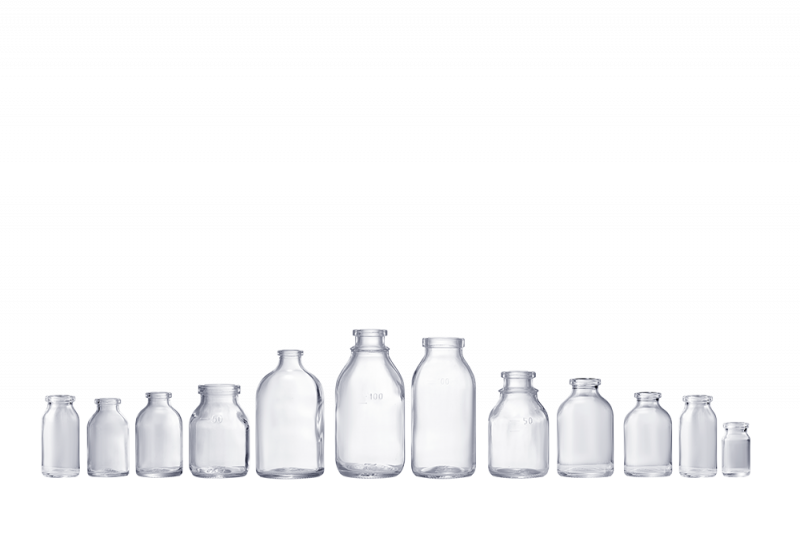

Molded Bottles
◆ Comply with EP, USP, JP, and ChP
◆ 100% online inspection of appearance and dimensions
◆ Type I molded injection vial: 7mlA,10mlA,15mlA,20mlA,30mlA,50mlA,100mlA
◆ Type I molded infusion bottle: 50mlA,100mlA,250mlA,250mlF,250mlB,500mlA

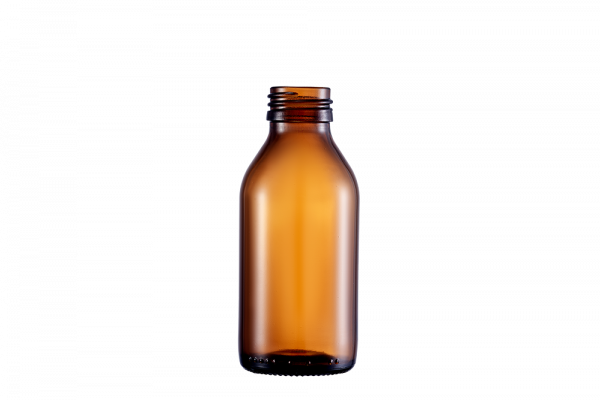

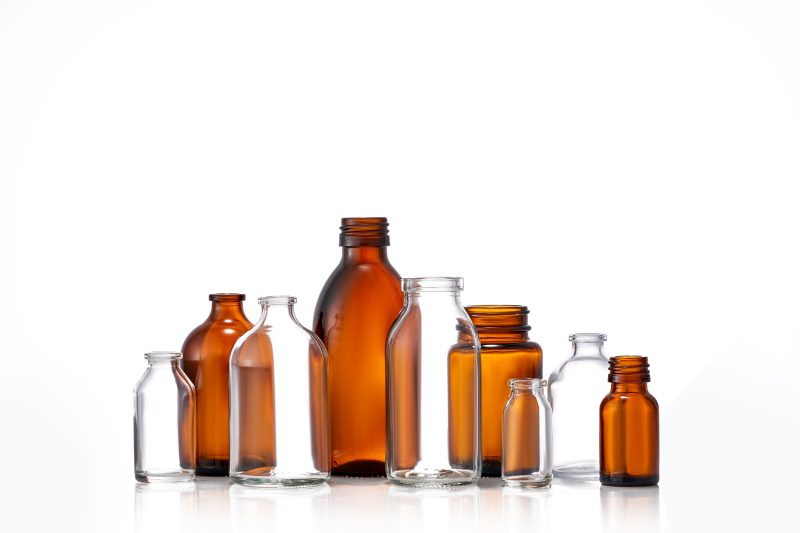

◆ Both clear color and amber color available
◆ Customized products available
◆ Screw neck molded bottle available
◆ Provide lightweight molded bottles
◆ ISO 8362-4:2011&ISO 8536-1:2011
◆ FDA DMF 038426
Product Detail
| Name | Specifications | Nominal capacity （ml） | Brimful capacity （ml） | Neck finish | Weight （g） | Height （mm） | Outer Diameter （mm） |
|---|---|---|---|---|---|---|---|
| Injection bottles Lightweight | 7mlA | 7 | 9 | ISO/CFDA | 13 | 40.8 | 22.1 |
| 10mlA | 10 | 15 | ISO/CFDA | 21 | 53.5 | 25.4 | |
| 15mlA | 15 | 17 | ISO/CFDA | 24 | 58.8 | 26.5 | |
| 20mlA | 20 | 26 | ISO/CFDA | 29 | 58 | 32 | |
| 30mlA | 30 | 38 | ISO/CFDA | 35 | 62.8 | 36 | |
| 50mlA | 50 | 60 | ISO/CFDA | 50 | 73 | 42.5 | |
| 100mlA | 100 | 119 | ISO/CFDA | 89 | 94.5 | 51.6 | |
| Infusion bottles | 50mlA | 50 | 65 | ISO032 | 60 | 68 | 46 |
| 100mlA | 100 | 122 | ISO032 | 100 | 104 | 49 | |
| 250mlA | 250 | 300 | ISO032 | 180 | 136 | 66 | |
| 500mlA | 500 | 585 | ISO032 | 280 | 177 | 78 | |
| 250mlF | 250 | 300 | F/26 | 190 | 140 | 68 | |
| 250mlB | 250 | 300 | B/28 | 220 | 140 | 68 |
