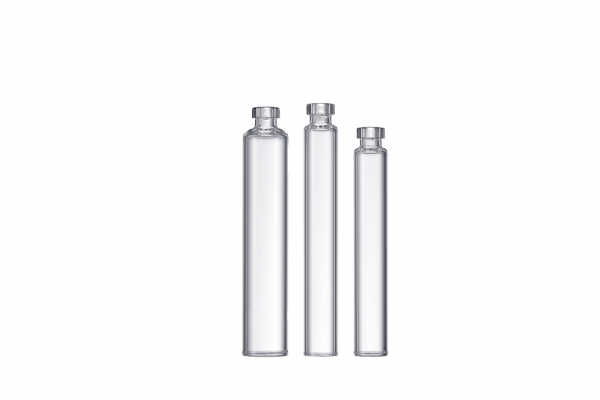

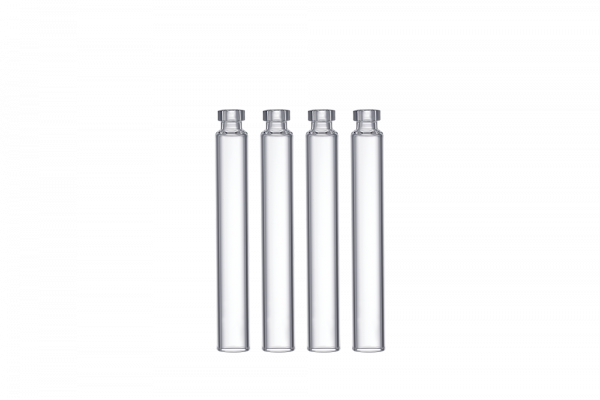

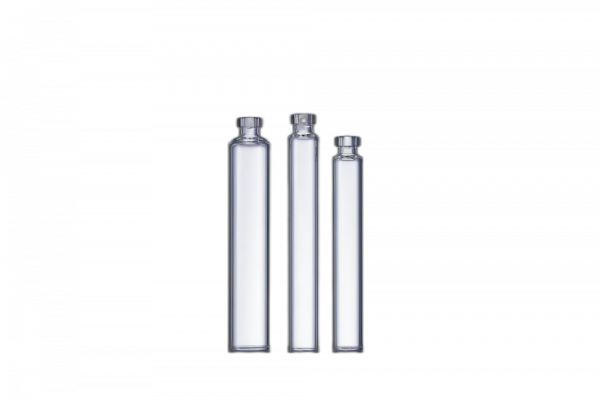

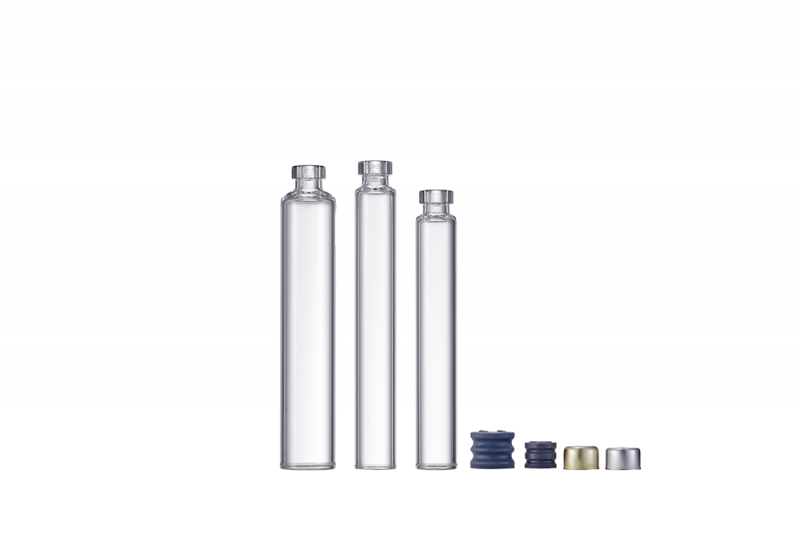

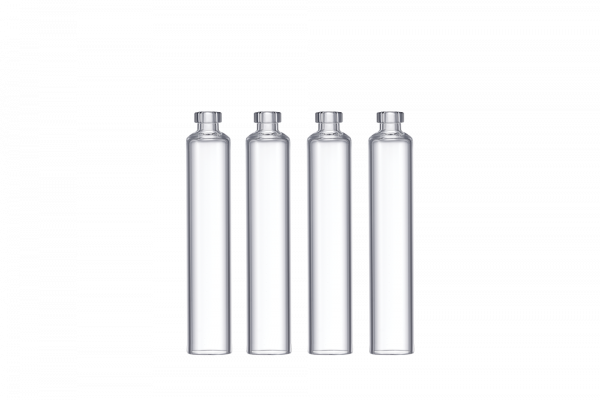

Cartridges
◆ Comply with USP, EP, JP, YBB, and ISO standards
◆ Exact tolerance control under 100% automatic online detection
◆ Provide coated cartridge and ready to use cartridge
◆ 5ml, 1.8ml, 3ml Cartridge
◆ ISO 13926-1:2018
◆ FDA DMF 040598
Product Detail

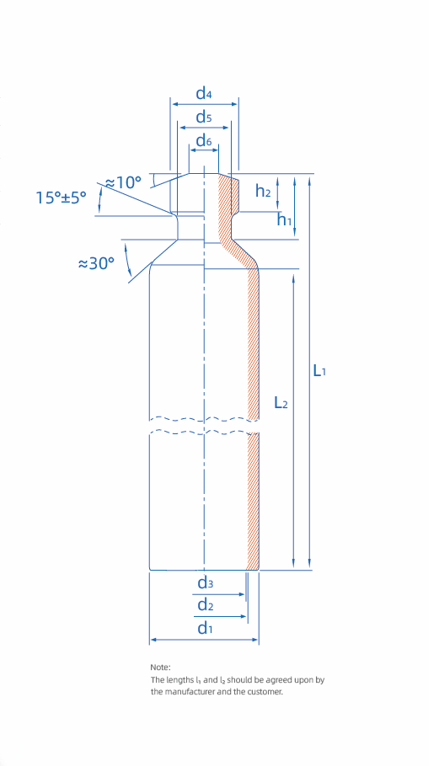

ISO13926-1:2018
| Outer Diameter | Height | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | d4 | d5 | d6 | h1 | h2 | |||||||
| Nominal | Tolerance | Nominal | Tolerance | Min | Nominal | Tolerance | Nominal | Tolerance | Nominal | Tolerance | Nominal | Tolerance | Nominal | Tolerance |
| 8.65 | ±0.1 | 6.85 | ±0.1 | 6.55 | 7.15 | ±0.2 | 5.5 | ±0.35 | 3.15 | ±0.2 | 5 | ±0.2 | 2.9 | ±0.1 |
| 10.85 | 8.65 | 8.35 | ||||||||||||
| 10.95 | ±0.15 | 9.25 | 8.95 | |||||||||||
| 11.6 | 9.65 | 9.35 | ||||||||||||
