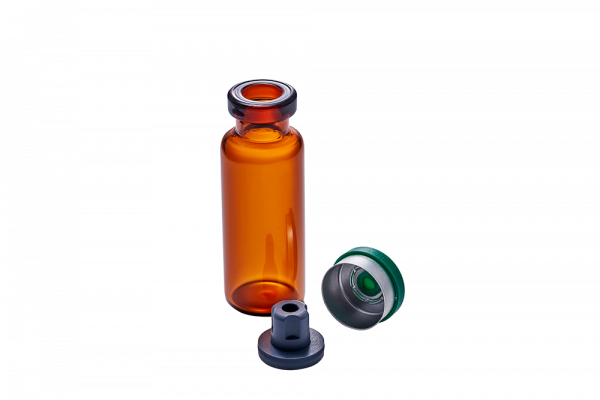

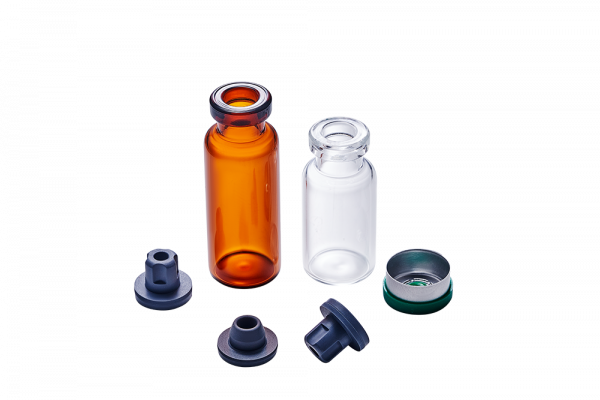

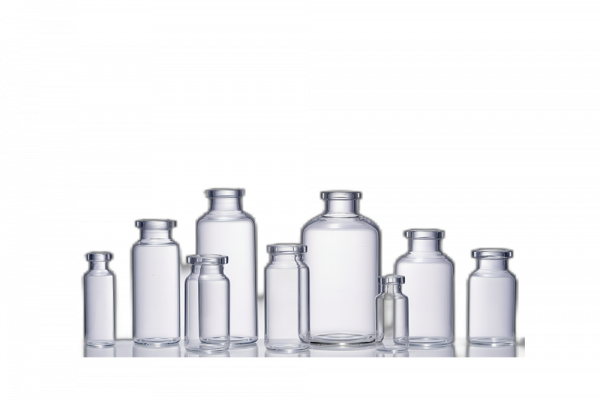

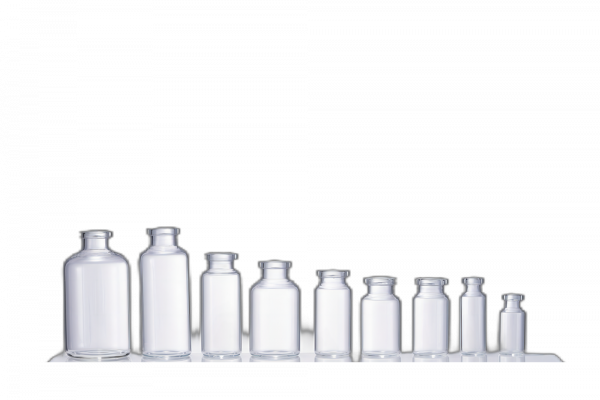

Tubular vials
◆ 100% online inspection of appearance/dimensions
◆ Comply with USP, EP, JP, YBB, and ISO standards
◆ Have good characteristics with hydrolytic, freeze-drying, acid resistance, alkali resistance, thermal shock resistance, etc.
◆ First choice of package for biological, sterile injection powder, vaccine, and blood products
◆ 2ml vials,3mlvials,4ml,5ml,6ml,7ml,8ml,10ml,15ml,20ml,25ml,30ml vials
◆ 2R,4R,6R,8R,10R,15R,20R,30R,50R vials
◆ First choice of package for biological, sterile injection powder, vaccine, and blood products
◆ Cosmetics use
◆ ISO8362-1:2009
◆ FDA DMF 2709
Product Detail

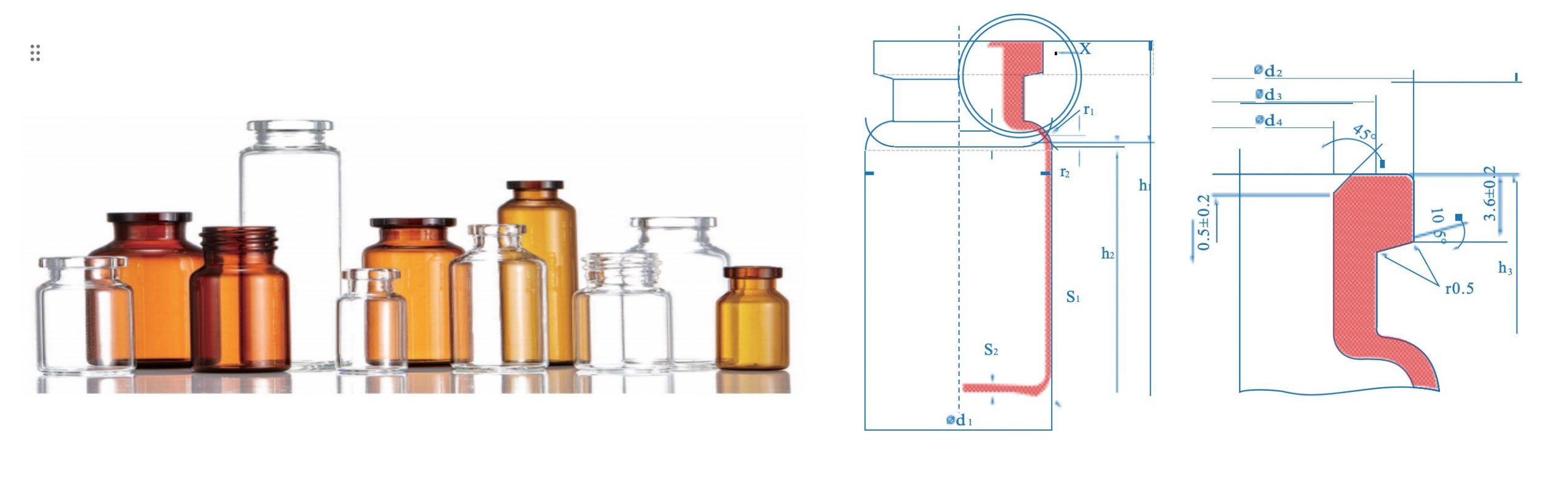

Borosilicate Glass Injection Vial Dimensions (Unit)：mm ISO 8362-1: 2009
| specifications | Brimful capacity (ml) | a | d1 | d2 | d3 (Max) | d4 | h1 | h2 (Min) | h3 | r1≈ | r2≈ | S1 | S2 (Min) | t (Max) | weight (g) ≈ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2R | 4 | 1 | 16 | 13 | 10.5 | 7 | 35 | 22 | 8 | 2.5 | 1.5 | 1 | 0.6 | 0.7 | 4.4 |
| 4R | 6 | 45 | 32 | 5.7 | |||||||||||
| 6R | 10 | 1.2 | 22 | 20 | 16.5 | 12.6 | 40 | 26 | 8.5 | 3.5 | 2 | 0.7 | 7.9 | ||
| 8R | 11.5 | 45 | 31 | 8.7 | |||||||||||
| 10R | 13.5 | 24 | 45 | 30 | 9 | 4 | 9.5 | ||||||||
| 15R | 19 | 60 | 45 | 12 | |||||||||||
| 20R | 26 | 1.5 | 30 | 17.5 | 55 | 35 | 10 | 5.5 | 2.5 | 1.2 | 1 | 16.2 | |||
| 25R | 32.5 | 65 | 45 | 18.9 | |||||||||||
| 30R | 37.5 | 75 | 55 | 21.9 | |||||||||||
| 50R | 62 | 2.5 | 40 | 73 | 49 | 6 | 4 | 1.5 | 0.9 | 1.5 | 34.5 |
